Late massive star evolution: physics challenges to numerics

Mathieu Renzo

Minilab 1

Massive star models become numerically more challenging as they evolve. Issues manifest as plummeting timesteps below any threshold. Broadly speaking, these issues can be seeded in either “the core” (where nuclear burning of heavier elements stiffens the equations) and/or “the envelope” (where small timesteps result in waves and occasionally spurious artificial accelerations, convection can be inefficient and density inversions occur, see Paxton et al. 2013, Jermyn et al. 2023). Each kind of issues can also interact non-linearly with the other, resulting in the majority of a grid crashing.

Note: this is not exclusively a “MESA” problem, but a result of the physics being described by progressively stiffer equations that are numerically more challenging to solve and require smaller timesteps. This is why most (but notably not all) stellar evolution codes stop at C core depletion at the latest.

The starting point

Task 1: Download the 15Msun_problem folder from gitHub.

git clone https://github.com/mathren/mesa25_best_practices.git && cd mesa25_best_practices/15Msun_problem

We will use a simple model of a 15M_☉ star (see the work directory you downloaded) to illustrate these problems. In the interest of speed, we will use a 22-isotope network and we have already evolved it beyond carbon core depletion (model number 1261).

Note: If you are interested in creating pre-SN models to study whether stars explode or not (and with what energies), you want to properly capture the free electron profile, which determines the effective Chandrasekhar mass of the core and thus its structure. Specifically, you want your results to be robust against adding more isotopes in your nuclear reaction network. For this, you need at least ∼80 isotopes (e.g., Farmer et al. 2016, Renzo et al. 2024, Grichener et al. 2025). If you are interested in the nuclear neutrino luminosities, for example for SN precursor alerts, you need at least ∼200 (e.g., Kato et al. 2020, Farag et al. 2020). If your science doesn’t depend on the core structure, you may get away with small nuclear reaction networks.

You can inspect the pgstar movie to see your initial conditions, which can be reproduced re-running inlist_early_evol.

Ideally, we want to be able to run this to the onset of core collapse, but again for summer school purposes, let’s just try to get beyond oxygen depletion and call it a success.

Note: min_timestep_limit is set to 1 seconds, too high for production models past O core burning, but it’s sufficiently low that one may not want to continue the evolution in testing, and in this particular case, we have tested that blindly lowering the min_timestep_limit down to 1d-20 will not bypass this issue.

Common situation: Running into a problem

Task 2: After initializing MESA and running ./clean && ./mk start from the provided photo (photos/x261).

The main inlist points to inlist_problem which is at this point is the same as inlist_early_evol (use to create the pre-computed initial conditions) except for the stopping criterion.

Note: It’s not exactly a bare-bone model, but definitely not science-ready!

Watch your model evolve. The terminal output is often the quickest way to get an idea of what’s going on, but it may scroll too fast to look at it. You can pause (without killing) the run with Ctrl-Z and resume it typing fg.

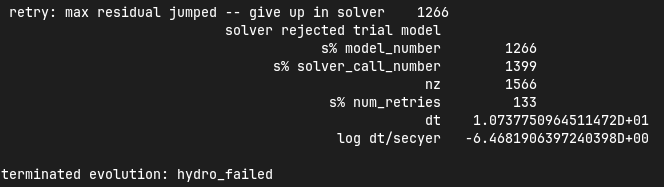

At model 1266 you should hit the hydro_failed condition.

At this point, for an individual model one may fiddle a bit to find a work-around (e.g., fiddling with increasing resolution, decreasing min_timestep_limit), but that can often become a messy random walk in the forest of MESA parameters. Sometimes, a problem cannot be worked around and needs to be fixed.

But what is the problem?

The terminal output indicates that MESA took a series of retries before hitting hydro_failed.

The output also says that there has been 133 of these retry, (not all at this specific timestep though). A retry means that the proposed solution of the ODEs you are solving is not good enough (left and right hand-side still differ too much, the difference is called residual), prompting MESA to retry from the initial conditions of the previous timestep with a smaller timestep size.

Another useful information is the value of s% solver_call_number, in this case 1399, which differs from the model number (here 1266) precisely because of the retries. This is the call to the solver that resulted in the hydro_failed.

Let’s collect more output about this.

MESA’s debugging output

We will instruct MESA to provide debugging output we don’t normally want to see. To do this we will use a particular set of controls in out inlist, which are described in the MESA documentation at $MESA_DIR/star/defaults/controls.defaults/ or online, and also collected for convenience in $MESA_DIR/star/test_suite/debugging_stuff_for_inlists. Don’t worry, we won’t need to use all of this!

Task 3a (optional): Copy the content of this file in your inlist_problem in the controls namelist (or “section”). Everything is commented (! in Fortran 90, used also in the inlists which are not proper Fortran files).

Task 3b: Uncomment and set to .true. the report_solver_progress control and restart the run again.

report_solver_progress = .true.

The run now produces more output per timestep, and thus scrolls faster (but you can still pause it with Ctrl-Z, restart with fg), but apart from that we haven’t changed anything and it should crash in the same way.

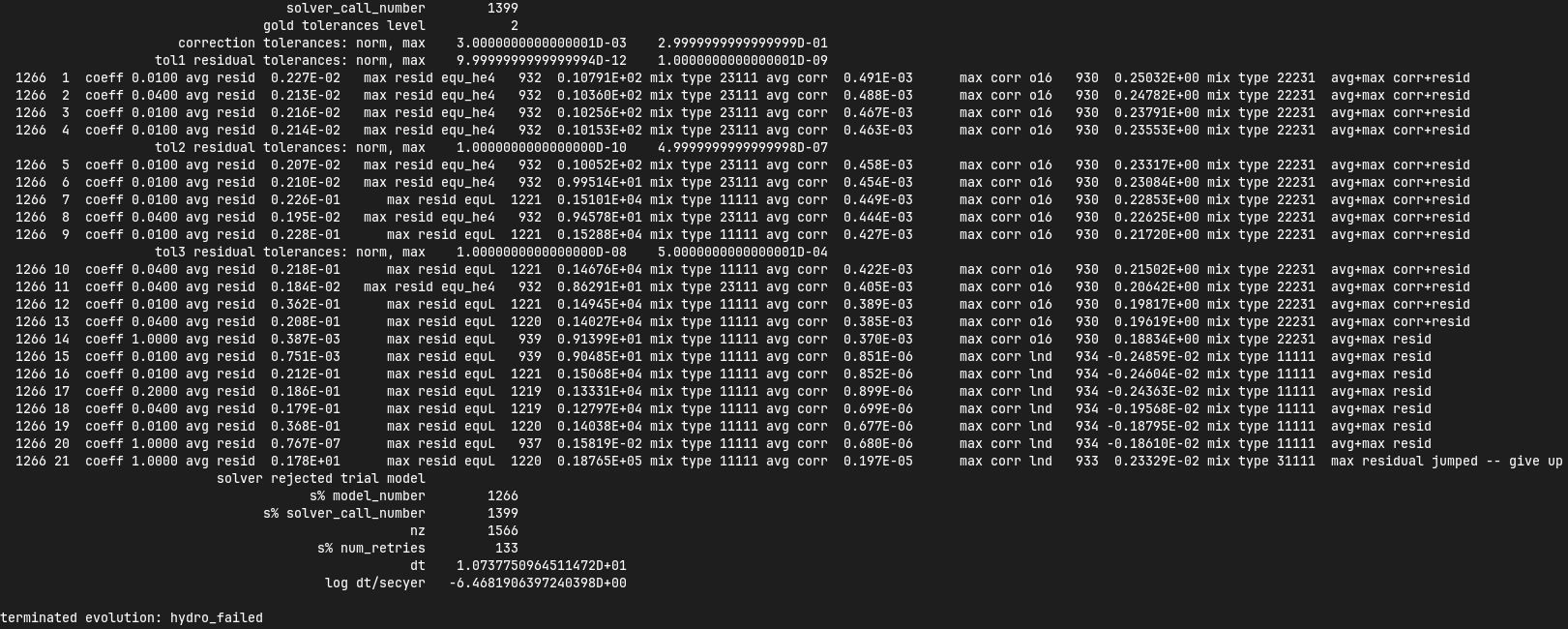

The solver call that crashes shows this:

Which is described in the MESA documentation here. After a line declaring the current solver call number (1399), which “gold” tolerance level we are applying, the reporting on each solver iteration starts.

The line starting with tol1 tells the level of tolerances currently applied, if no solution can be found, this is relaxed to tol2 and later tol3 after a set of user-specified number of solver iterations.

For the lines produced at each iteration, the first column says the current timestep (1266), the second shows the solver iteration number for the current call (1, 2, …). The most important things for us are the column containing equ-something and the column following max corr.

equ is the name that MESA gives to the residuals, as you can verify checking the definitions in $MESA_DIR/star_data/public/. This is the place where all variables available to MESA are defined.

Task 4: Using grep (or similar tools) you can look for equ here and see if anything useful comes up, you should find something to help you understand what this is.

If you don’t know where to start, you can grep the entire $MESA_DIR directory, but it’s more work to weed out output you don’t need.

grep -R "equ" $MESA_DIR/star_data/public/*

star_data/public/star_data_step_input.inc:      ! flags indicating extra variables and equations in addition to the minimal set
star_data/public/star_data_step_input.inc:      ! index definitions for the equations (= 0 if equation not in use)
star_data/public/star_data_step_input.inc:         integer :: i_equL ! luminosity
star_data/public/star_data_step_input.inc:         integer :: i_detrb_dt ! turbulent energy equation. only when RSP2_flag is true.
star_data/public/star_data_step_input.inc:         integer :: i_equ_Hp ! face pressure scale height equation. only when RSP2_flag is true.
star_data/public/star_data_step_input.inc:      ! names of variables and equations
star_data/public/star_data_step_input.inc:         character (len=name_len), dimension(:), pointer :: nameofvar, nameofequ ! (nvar)
star_data/public/star_data_step_input.inc:         ! 900 million different sequences. the state of the generator (for restarts)
star_data/public/star_data_step_input.inc:         integer :: i_equ_w_div_wc ! equation for w_div_wc
star_data/public/star_data_step_input.inc:         integer :: i_dj_rot_dt ! equation for specific angular momentum
star_data/public/star_data_def.inc:      ! 900 million different sequences. the state of the generator (for restarts)
star_data/public/star_data_def.inc:               id, nz, xm, r, rho, aw, ft, fp, r_polar, r_equatorial, report_ierr, ierr)
star_data/public/star_data_def.inc:            real(dp), intent(inout) :: r_polar(:), r_equatorial(:)
star_data/public/star_data_def.f90:         ! gfortran seems to require "save" here.  at least it did once upon a time.
star_data/public/star_data_step_work.inc:      ! eos partials for use in calculating equation partials for Jacobian matrix
star_data/public/star_data_step_work.inc:      real(dp), pointer :: w_div_w_crit_roche(:) ! fraction of critical rotation at the equator,
star_data/public/star_data_step_work.inc:      real(dp), pointer :: r_equatorial(:) ! radius in equatorial direction
star_data/public/star_data_step_work.inc:      ! extra gravity (can be set by user)  added to -G*m/r^2 in momentum equation
star_data/public/star_data_step_work.inc:         surf_r_equatorial, surf_csound, surf_rho
star_data/public/star_data_step_work.inc:            ! equivalently, this is the smallest k st. for all k' > k,
star_data/public/star_data_step_work.inc:      ! equation residuals, etc
star_data/public/star_data_step_work.inc:         ! equ(i,k) is residual for equation i of cell k
star_data/public/star_data_step_work.inc:         real(dp), dimension(:,:), pointer :: equ=>null() ! (nvar,nz);  equ => equ1
star_data/public/star_data_step_work.inc:         real(dp), dimension(:), allocatable :: equ1 ! (nvar*nz); data for equ
star_data/public/star_data_step_work.inc:         ! dblk(i,j,k) = dequ(i,k)/dx(j,k)
star_data/public/star_data_step_work.inc:         ! lblk(i,j,k) = dequ(i,k)/dx(j,k-1)
star_data/public/star_data_step_work.inc:         ! ublk(i,j,k) = dequ(i,k)/dx(j,k+1)

Thus, the equ column tells us which residual is largest for the proposed and rejected solution:, in this case initially it’s equ_he4 at iteration 1 of the solver, it can change at every iteration, until at the end it is equL. This is the thing that is making our model crash. Moreover, scrolling upward through the solver iterations we see that the residual (4^th but last column) is jumping from negative to positive from iteration 20 to iteration 21. Finally, during these iterations, lnd (that is, physically, the density) is the problematic variable. At each iteration of the solver (shown as a line here), MESA is searching for a solution with a Generalized Newton-Raphson solver (see sec. 6.3 of Paxton et al. 2011): the iterative corrections to an initial guess (the solution of the previous timestep) depend on the derivatives of the residuals with respect to the variables (see excellent wikipedia gif for intuition on this).

Note: Unless the timestep is too small, the initial guess is usually not a good solution in many different ways, and which residual is initially largest among many too large values is not particularly important. The lines with the latest solver iterations are the most important here.

So the correct way to interpret this output is that the equation equL cannot be satisfied within the defined numerical tolerances of the Newton-Raphson solver. This in general can occur because of multiple reason (and potentially requiring different fixes/work-arounds), for example:

• an assumption of the equation is violated (⇒ maybe you want to reformulate the equation differently, often there are options already available in MESA or you can implement your own with run_star_extras.f90)
• too large numerical errors introduced in the discretization (⇒ remeshing before the problem arise can help)
• One or more inputs or parameters of the equation are too noisy (⇒ you may need to remesh based on a quantity different than the one calculated by the problematic equation).

Moreover, the terminal output also shows that the residual equL has a bad derivative with respect to the variable dens in the last line.

But what is the equation for which the residual is equL? One would naively assume a luminosity equation given the name! However, in MESA the luminosity is a solver variable and there isn’t really a “luminosity equation” (except for the local energy conservation).

Task 5: Let’s use tools such grep to inspect the code to find out what equL may be.

grep -IR --include="*.f90" "equL" $MESA_DIR

$MESA_DIR/star/private/hydro_temperature.f90:         integer :: i_equL, i
$MESA_DIR/star/private/hydro_temperature.f90:         i_equL = s% i_equL
$MESA_DIR/star/private/hydro_temperature.f90:         if (i_equL == 0) return
$MESA_DIR/star/private/hydro_temperature.f90:         s% equ(i_equL, k) = resid%val
$MESA_DIR/star/private/hydro_temperature.f90:            s, k, nvar, i_equL, resid, 'do1_alt_dlnT_dm_eqn', ierr)
$MESA_DIR/star/private/hydro_temperature.f90:         integer :: i_equL
$MESA_DIR/star/private/hydro_temperature.f90:         i_equL = s% i_equL
$MESA_DIR/star/private/hydro_temperature.f90:         if (i_equL == 0) return
$MESA_DIR/star/private/hydro_temperature.f90:         s% equ(i_equL, k) = resid%val
$MESA_DIR/star/private/hydro_temperature.f90:         if (is_bad(s% equ(i_equL, k))) then
$MESA_DIR/star/private/hydro_temperature.f90:            if (s% report_ierr) write(*,2) 'equ(i_equL, k)', k, s% equ(i_equL, k)
$MESA_DIR/star/private/hydro_temperature.f90:            write(*,2) 'equ(i_equL, k)', k, s% equ(i_equL, k)
$MESA_DIR/star/private/hydro_temperature.f90:            s% solver_test_partials_val = s% equ(i_equL,k)
$MESA_DIR/star/private/hydro_temperature.f90:            s, k, nvar, i_equL, resid, 'do1_gradT_eqn', ierr)
$MESA_DIR/star/private/hydro_temperature.f90:         integer :: i_equL
$MESA_DIR/star/private/hydro_temperature.f90:         i_equL = s% i_equL
$MESA_DIR/star/private/hydro_temperature.f90:         if (i_equL == 0) return
$MESA_DIR/star/private/hydro_temperature.f90:         s% equ(i_equL, k) = resid%val
$MESA_DIR/star/private/hydro_temperature.f90:         if (is_bad(s% equ(i_equL, k))) then
$MESA_DIR/star/private/hydro_temperature.f90:            if (s% report_ierr) write(*,2) 'equ(i_equL, k)', k, s% equ(i_equL, k)
$MESA_DIR/star/private/hydro_temperature.f90:            write(*,2) 'equ(i_equL, k)', k, s% equ(i_equL, k)
$MESA_DIR/star/private/hydro_temperature.f90:            call mesa_error(__FILE__,__LINE__,'i_equL')
$MESA_DIR/star/private/hydro_temperature.f90:            s% solver_test_partials_val = s% equ(i_equL,k)
$MESA_DIR/star/private/hydro_temperature.f90:            s, k, nvar, i_equL, resid, 'do1_dlnT_dm_eqn', ierr)
$MESA_DIR/star/private/hydro_eqns.f90:            i_dv_dt, i_du_dt, i_du_dk, i_equL, i_dlnd_dt, i_dlnE_dt, i_dlnR_dt, &
$MESA_DIR/star/private/hydro_eqns.f90:            do_alpha_RTI, do_w_div_wc, do_j_rot, do_dlnE_dt, do_equL, do_detrb_dt
$MESA_DIR/star/private/hydro_eqns.f90:         do_equL = (i_equL > 0 .and. i_equL <= nvar)
$MESA_DIR/star/private/hydro_eqns.f90:            if (do_equL) then
$MESA_DIR/star/private/hydro_eqns.f90:            call PT_eqns_surf(s, nvar, do_du_dt, do_dv_dt, do_equL, ierr)
$MESA_DIR/star/private/hydro_eqns.f90:            i_equL = s% i_equL
$MESA_DIR/star/private/hydro_eqns.f90:      subroutine PT_eqns_surf(s, nvar, do_du_dt, do_dv_dt, do_equL, ierr)
$MESA_DIR/star/private/hydro_eqns.f90:         logical, intent(in) :: do_du_dt, do_dv_dt, do_equL
$MESA_DIR/star/private/hydro_eqns.f90:         if ((.not. do_equL) .or. &
$MESA_DIR/star/private/hydro_eqns.f90:            s% equ(s% i_equL, 1) = residual
$MESA_DIR/star/private/hydro_eqns.f90:               s, 1, nvar, s% i_equL, resid_ad, 'set_Tsurf_BC', ierr)
$MESA_DIR/star/private/alloc.f90:            s% i_equL = s% i_lum
$MESA_DIR/star/private/alloc.f90:            s% i_equL = s% i_lnd
$MESA_DIR/star/private/alloc.f90:         if (s% i_equL /= 0) s% nameofequ(s% i_equL) = 'equL'
$MESA_DIR/star/private/photo_in.f90:            s% i_dv_dt, s% i_equL, s% i_dlnd_dt, s% i_dlnE_dt, &
$MESA_DIR/star/private/init.f90:         s% i_equL = 0
$MESA_DIR/star/private/ctrls_io.f90:    include_rotation_in_total_energy, convergence_ignore_equL_residuals, convergence_ignore_alpha_RTI_residuals, &
$MESA_DIR/star/private/ctrls_io.f90: s% convergence_ignore_equL_residuals = convergence_ignore_equL_residuals
$MESA_DIR/star/private/ctrls_io.f90: convergence_ignore_equL_residuals = s% convergence_ignore_equL_residuals
$MESA_DIR/star/private/hydro_rsp2.f90:         s% equ(s% i_equL, k) = residual
$MESA_DIR/star/private/hydro_rsp2.f90:         call save_eqn_residual_info(s, k, nvar, s% i_equL, resid, 'do1_rsp2_L_eqn', ierr)
$MESA_DIR/star/private/photo_out.f90:            s% i_dv_dt, s% i_equL, s% i_dlnd_dt, s% i_dlnE_dt, &
$MESA_DIR/star/private/solver_support.f90:         if (s% convergence_ignore_equL_residuals) skip_eqn1 = s% i_equL

In fact, equL is a short hand for s%equ(i_equL, :) which is assigned in $MESA_DIR/star/private/hydro_temperature.f90 at line 274 by this snippet:

gradT = s% gradT_ad(k)
dlnTdm = dlnPdm*gradT

Tm1 = wrap_T_m1(s,k)
T00 = wrap_T_00(s,k)
dT = Tm1 - T00
alfa = s% dm(k-1)/(s% dm(k-1) + s% dm(k))
Tpoint = alfa*T00 + (1d0 - alfa)*Tm1
lnTdiff = dT/Tpoint ! use this in place of lnT(k-1)-lnT(k)
delm = (s% dm(k) + s% dm(k-1))/2

resid = delm*dlnTdm - lnTdiff
s% equ(i_equL, k) = resid%val

which suggests that equL is the residual of the temperature gradient equation, not a (non-existing) luminosity equation. See also Paxton et al. 2011 Sec. 6.2 (specifically Eq. 8).

Why this name then? In a star, the temperature gradient will adjust to carry the luminosity (leading to convection if the radiative gradient is insufficient). So we can use the temperature gradient to calculate luminosity. However, it is numerically convenient to flip things, and use the luminosity to calculate the temperature gradient instead: ultimately equL is about the luminosity, but the equation it is the residual of is the temperature gradient equation.

Optional: confirming the bad term

To confirm that it is the derivative of the residual equL with respect to the density lnd is behaving bad, let’s get some info about those by uncommenting and setting in our inlist the following:

solver_test_partials_call_number = 1399
solver_test_partials_iter_number = 21
solver_test_partials_k = 21
solver_test_partials_equ_name = 'equL'
solver_test_partials_var_name = 'lnd'
solver_test_partials_dx_0 = 1d-5

Note: At this stage you may also want to set solver_save_photo_call_number equal to the solver call of the problem (in our case 1399) so MESA will save a photo just before this solver call, saving you time to debug.

This tells MESA we want more output at solver call number 1399, we want to inspect the 21 iteration of the solver, and we want to see the partial derivatives of the luminosity equation with respect to lnd. This will also make MESA crash right after that iteration of the solver: you will need to undo these changes to continue. Scroll up (or re-run) to see the output:

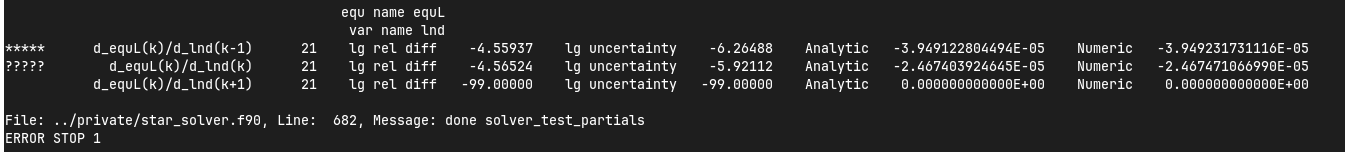

which confirms that the suspected partial derivative is the culprit of the problem, specifically the line with **** indicates the worse term.

So this is the (first) problem!

The derivative of the residual of the equation for the temperature gradient, a.k.a. equL with respect to the variable lnd, the density is causing flip-flopping large corrections to the trial solution and preventing the solver from finding a satisfying solution. This suggest the calculation of this derivative is too imprecise – this may not advance us so much, but at least we know which equation is giving us numerical troubles!

Note: Sometimes it easier to spot problems making plots, or staring at pgstar. The technique illustrated here is a last resort when plotting and physical plus numerical intuition are not enough to get out of a hole.

Note: This technique is general and can be used for any model crashing. Once you’ve identified the problem, the solution will typically need to be tailored to that specific problem.

Finding a solution

There may be more than one! This is where computing stellar structure and evolution models is a bit of an art: experience from trial-and-error and many wasted CPUh is the best way to become proficient at finding solutions and/or work-arounds.

Since the problem is in equL, one naive thing one can do is to ignore the residuals of those equation. In fact, there is a controls flag to do this in MESA: this suggests this is a common enough problem!

Task 6: Find the flag that may help us and add it to inlist_problem (and maybe remove the debug options we previously activated to reduce I/O). Then restart the run.

convergence_ignore_equL_residuals = .true.

This is of course not an elegant solution to be used with extra care only if acceptable for your scientific purposes.

However, note that the test suite for massive stars does use it! See for example $MESA_DIR/star/test_suite/20M_pre_ms_to_core_collapse/inlist_common!

Even worse, if you search in the test_suite for convergence_ignore_equL_residuals, you will find many more instances of this setting being used! Are we giving up on solving the energy transport/temperature gradient equation all these times?

Task 7: find all instances of the controls setting in the $MESA_DIR/star/test_suite

cd $MESA_DIR/star/test_suite && grep -R "convergence_ignore_equL_residuals = .true." ./* && cd -

./12M_pre_ms_to_core_collapse/inlist_common:      convergence_ignore_equL_residuals = .true.
./1.5M_with_diffusion/inlist_1.5M_with_diffusion:   convergence_ignore_equL_residuals = .true.
./1M_pre_ms_to_wd/inlist_to_end_core_he_burn:      convergence_ignore_equL_residuals = .true.
./20M_pre_ms_to_core_collapse/inlist_common:      convergence_ignore_equL_residuals = .true.
./20M_z2m2_high_rotation/inlist_to_end_core_he_burn:      convergence_ignore_equL_residuals = .true.
./ccsn_IIp/inlist_infall:  convergence_ignore_equL_residuals = .true.
./ccsn_IIp/inlist_end_infall:  convergence_ignore_equL_residuals = .true.
./ccsn_IIp/inlist_edep:  convergence_ignore_equL_residuals = .true.
./ccsn_IIp/inlist_shock_common:      convergence_ignore_equL_residuals = .true.
./gyre_in_mesa_rsg/inlist_common_post_zams:   convergence_ignore_equL_residuals = .true.
./hb_2M/inlist_to_ZACHeB:      convergence_ignore_equL_residuals = .true. ! needed during flash
./irradiated_planet/inlist_evolve:      convergence_ignore_equL_residuals = .true.
./make_brown_dwarf/inlist_make_brown_dwarf:   convergence_ignore_equL_residuals = .true.
./make_co_wd/inlist_remove_env:      convergence_ignore_equL_residuals = .true.
./make_o_ne_wd/inlist_remove_envelope:      convergence_ignore_equL_residuals = .true.
./make_o_ne_wd/inlist_settle_envelope:      convergence_ignore_equL_residuals = .true.
./make_o_ne_wd/inlist_o_ne_wd:      convergence_ignore_equL_residuals = .true.
./make_planets/inlist_create:   convergence_ignore_equL_residuals = .true.
./make_pre_ccsn_13bvn/inlist_massive_defaults:      convergence_ignore_equL_residuals = .true.
./ns_c/inlist_to_c_flash:      convergence_ignore_equL_residuals = .true.
./pisn/inlist_common_converted:      convergence_ignore_equL_residuals = .true.
./pisn/inlist_common:      convergence_ignore_equL_residuals = .true.
./split_burn_big_net/inlist_common:      convergence_ignore_equL_residuals = .true.
./twin_studies/inlist_common:      convergence_ignore_equL_residuals = .true.
./tzo/inlist_initial_make:   convergence_ignore_equL_residuals = .true.
./tzo/inlist_evolve_tzo:      convergence_ignore_equL_residuals = .true.
./wd_acc_small_dm/inlist_wd_acc_small_dm:      convergence_ignore_equL_residuals = .true.
./wd_c_core_ignition/inlist_wd_c_core_ignition:      convergence_ignore_equL_residuals = .true.
./wd_nova_burst/inlist_wd_nova_burst:   convergence_ignore_equL_residuals = .true.
./wd_nova_burst/inlist_setup:   convergence_ignore_equL_residuals = .true.

In $MESA_DIR/star/private/hydro_temperature.f90, where we previously found the definition of equL, we can see a useful comment:

! dT/dm = dP/dm * T/P * grad_T, grad_T = dlnT/dlnP from MLT.
! but use hydrostatic value for dP/dm in this.
! this is because of limitations of MLT for calculating grad_T.
! (MLT assumes hydrostatic equilibrium)
! see comment in K&W chpt 9.1.

So according to this, the equation we are trying to solve assumes hydrostatic equilibrium because it implicitly relies on mixing length theory (MLT) to get ∇ = gradt_T.

At the same time, most test cases where we find convergence_ignore_equL_residuals = .true. seem to imply some dynamical phase of evolution (massive stars going to core collapse, flashes, etc.): if your model is not perfectly in hydrostatic equilibrium, there is no reason to expect that this equation can be solved perfectly, because one of its implicit assumptions is not exactly verified.

This is what allows this “dirty trick” without having to throw away all the possible science!

Note: The fact that we ignore the residual in equL does not imply this equation will necessarily not be satisfied, we are just telling the solver that we are willing to accept solutions with large residual, and we hope that the numerical tolerances on other quantities will give a reasonable answer even if numerically not perfect.

If everything went well, the run should now proceed past model 1266: you have successfully bypassed the problem! This model should continue until Oxygen depletion (defined as $X_c{(}^{16}\mathrm{O})\le 10^{-5}$ ). Congratulations!

Bonus task 1: You can edit the stopping condition in your inlist_problem to evolve past Oxygen depletion. You may also want to decrease the min_timestep_limit to something smaller than 1 second. A second crash should occur during Si core burning. You can use the things you learned in this lab to find the problem and try to fix it. Remember that the nuclear reaction network we are using here is insufficient for science focusing on the core of evolved massive stars!

Bonus task 2: Find an alternative possible solution by reformulating the problematic equation (Note: this is untested by us!). You probably don’t want to change which system of ODE you are solving on the fly (although there are exceptions, for example when a very massive star approaches pair instability you may want to change the momentum equation!), so you may need to restart the model from ZAMS.

Bonus task 3: Change the nuclear reaction network to mesa_204.net and try to push this model to the onset of core collapse. If you succeed, do a resolution test! If the quantities of interests are resolved, you may have a science-grade setup now! (Note: do not attempt this during the school, it will take too much computing time! This is also untested by us.)

After you found the solution

If your solution implies changing at some point something in the setup (e.g., any inlist entry changing the physics or numerics) you should either:

1. re-run from the beginning, to verify that the introduced change does not make the model crash earlier or change any interpretation of the results earlier in the evolution (if not, you may want to run from ZAMS with the fix you just found)
2. if that is not possible and you’re willing to change something “on-the-fly”, try to implement this as a change from run_star_extras.f90.

While option 1. is desirable, it is not always possible, plus, sometimes you may be willing to turn off some physics that acts on timescales long compared to the remaining lifetime (e.g., thermohaline mixing past C depletion), or relax some numerical criteria when things get too hard.

Option 2. can be done for example using the extras_start_step function in run_star_extras.f90: add an if statement to catch “when” in the evolution the change should happen (e.g., based on central abundances or temperature) and change the values of entries in controls through the s% pointer. For example, to change max_model_number (a controls setting), you can overwrite your inlist with:

s% max_model_number = 1260

There are some examples of doing these in the test_suite and from reproducible publications on zenodo! See for example $MESA_DIR/star/test_suite/make_co_wd/src/run_star_extras.f90 or $MESA_DIR/star/test_suite/ppisn/src/run_star_extras.f90 for examples.

Note: you can also use b % in the MESA binary module to change things of binary_controls.

Option 2. at least will minimize the amount of hand-holding required for your models.

Wrap up

The main point of this exercise was to teach how to access and read debugging output at a specific iteration of the solver during a MESA run. This can reveal which equation and which variables are causing troubles.

Very often, at this point, one needs to consider what is the root of the issue to fix it. Some issues are common, known, and still awaiting a general fix, so we sometimes chose that it’s ok to ignore them, which is what we have done here - while not recommended in general, this is sometimes acceptable, especially during development.

Hopefully, what you have learned here can be helpful if further problem arise, and more generally. As you’ve seen, this is a significant amount of work, and often you can use intuition to take short cuts through this process.

Before diving into debugging options, to identify the problem, the first thing is to make plots. It is quick and often useful to look at pgplots. Very often, with a bit of physical intuition and experience one can identify the problem just looking at the model.

Note: At this stage, you may want to look at variables you don’t necessarily focus on for your science: sometimes it’s things you don’t care about that grind your model(s) to a halt! Stellar evolution is a highly non-linear problem. Sometimes changing axes (quantities and scale) to change perspective also helps.

pgplots may not be that pretty to look at, but they can be very helpful to spot problems and depending on your science case you may be able to afford a band-aid solution. But sometimes you need to know what is the root cause, which equation is yielding the largest residual and driving the decrease in timesteps.

Finally, here we focused on showing the use of debugging options accessible from the inlist. Adding print *, statements in your run_star/binary_extras.f90 can also be helpful (especially if you are doing something custom there). Ultimately, sometimes one really needs to get their hands dirty, and dig into the modules. If and when you reach this point, it may be useful to look at the MESA documentation on how to develop and reach out to the mailing list!

Full solution minilab1

An inlist with the full solution is provided as a hidden file .inlist_solution_minilab1. You can rename it and/or point your main inlist to it. MESA will read a hidden file!

Useful references

Relevant MESA documentation pages:

• MESA docs: “Best practices”
• MESA docs: “Debugging”
• Bill Wolf’s tutorial on debugging
